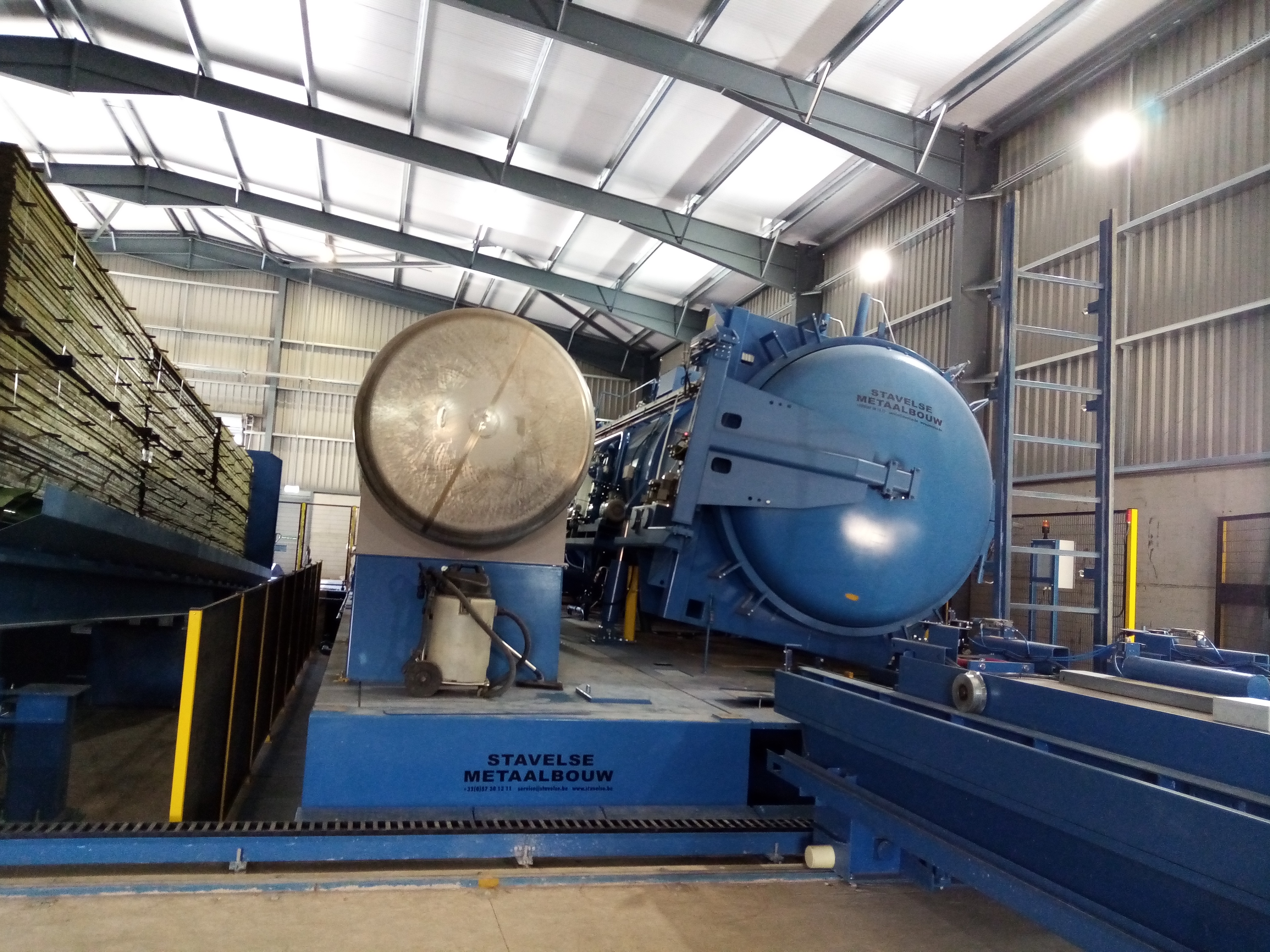

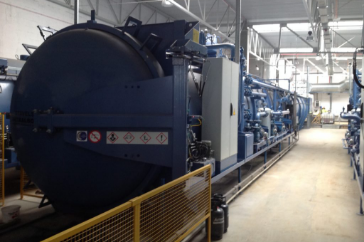

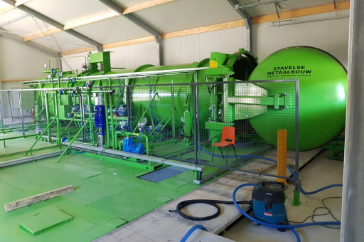

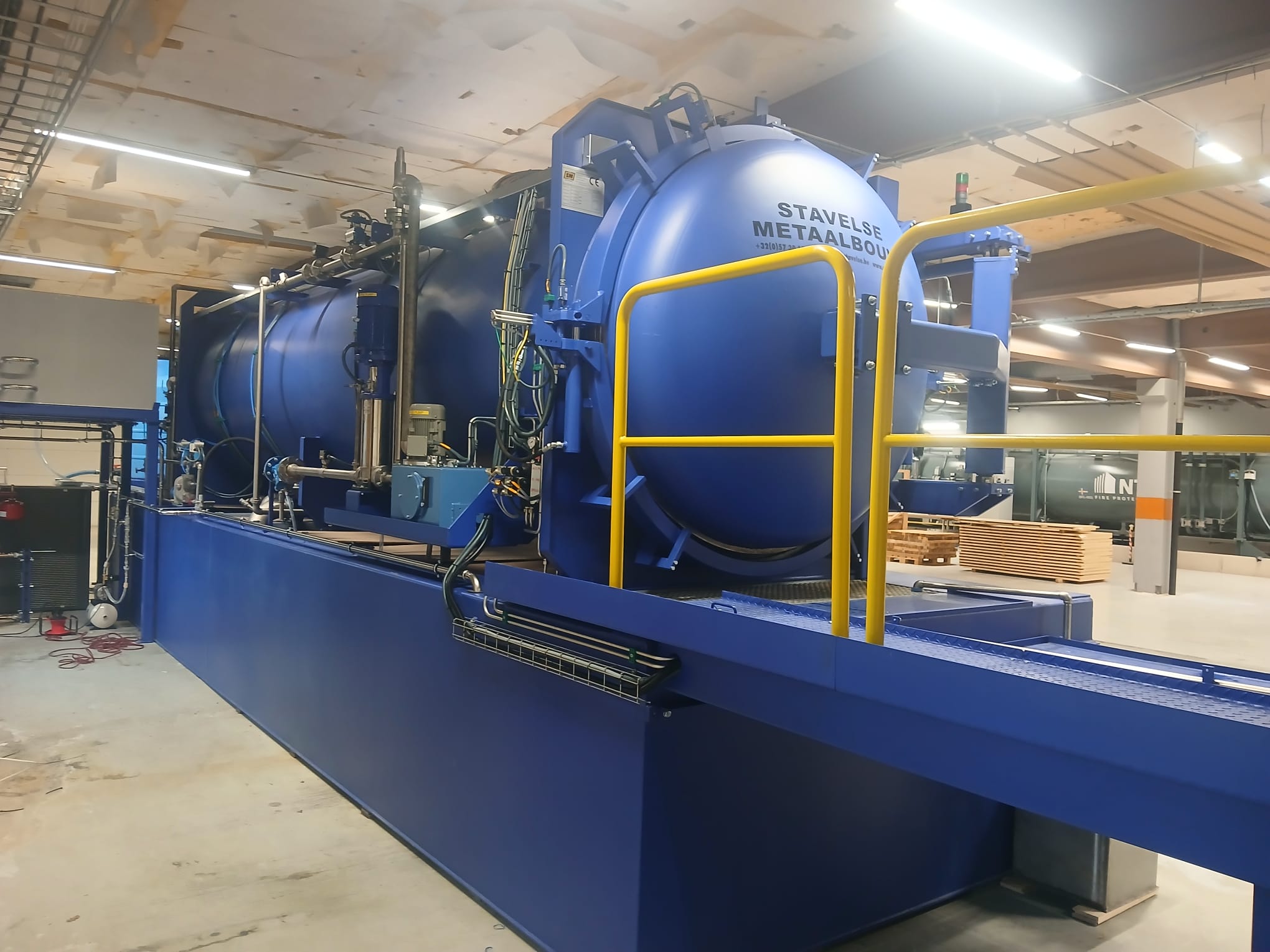

High pressure

This type of autoclave is used to achieve treatment according to class 3 and 4. Wood treated in this way is suitable for outdoor use without ground contact (class 3) and outdoor use with ground contact (class 4).

The wood is put under vacuum and then under pressure, causing the liquid to penetrate deeply.

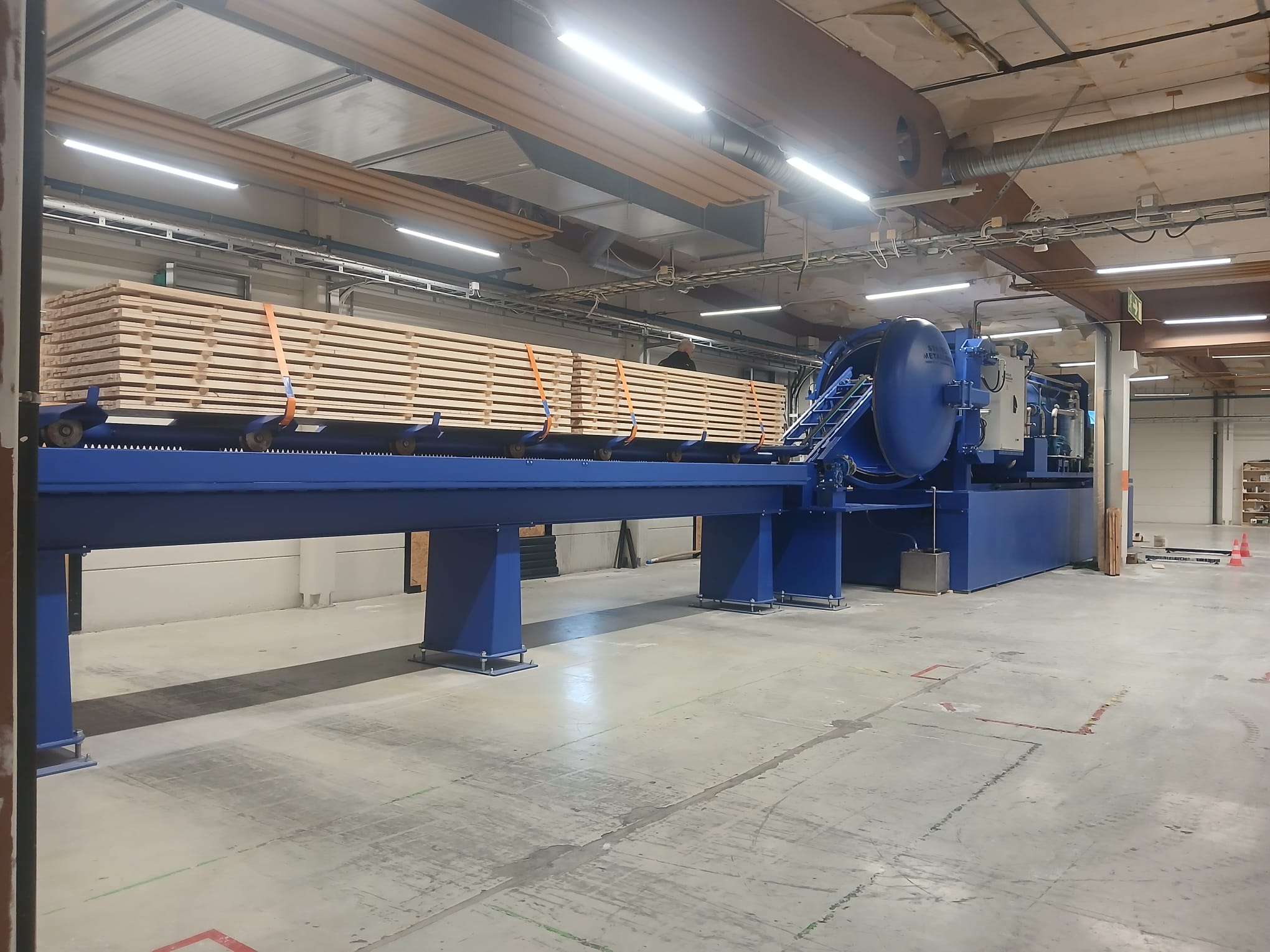

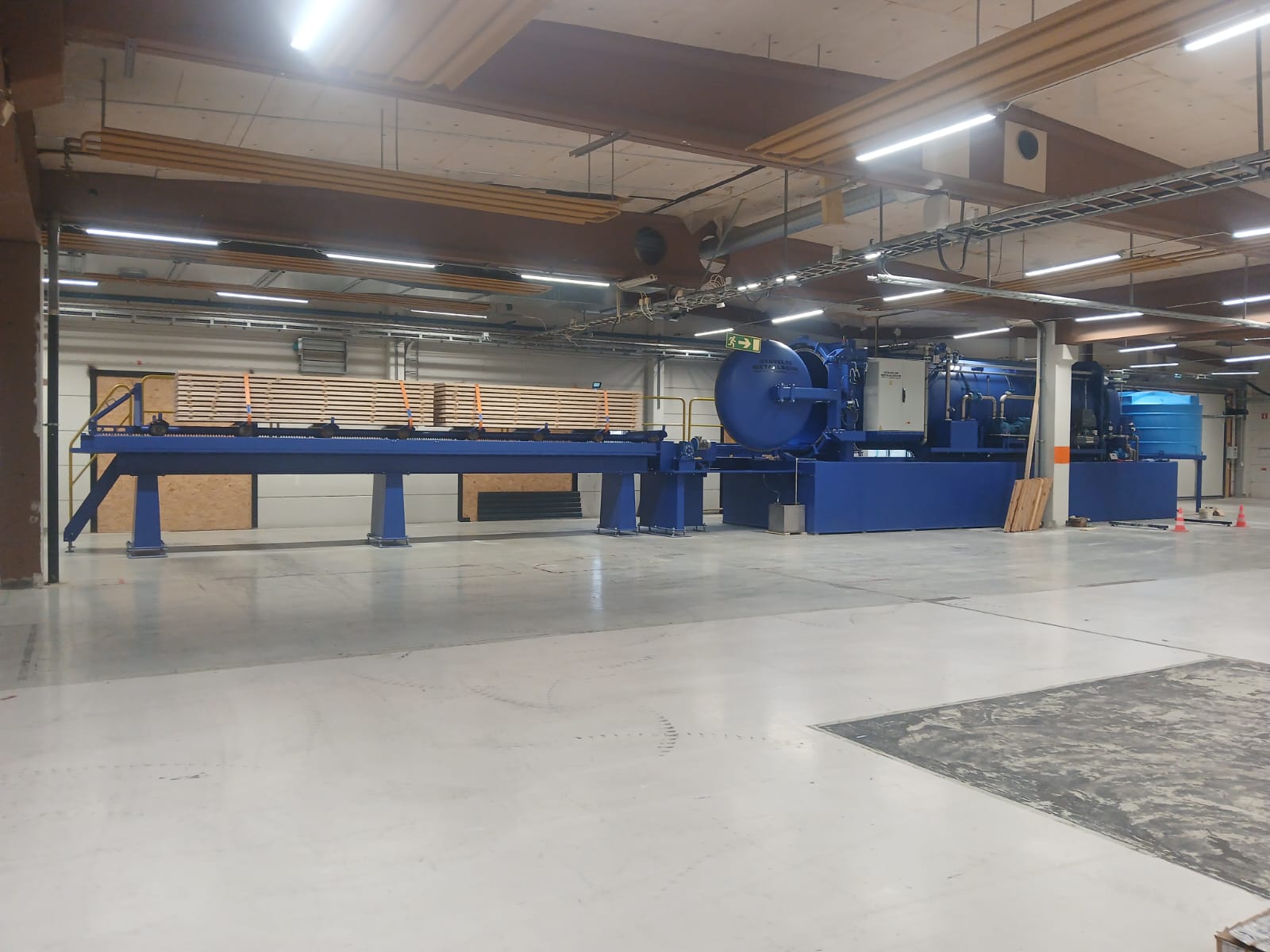

Depending on the customer's needs, a standard solution with selected options can be chosen, up to a fully automatic installation with supply and discharge conveyors with or without storage.

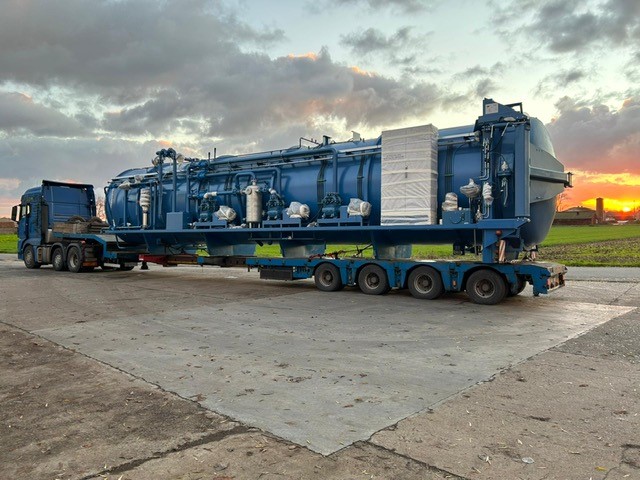

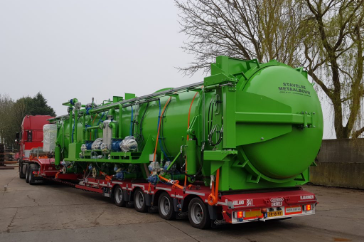

This type of autoclave is always made with a cylindrical tank.
   •    Pack size according to the diameter
        o    Dia 1.6m : H=1.0m ; W=1.0m
        o    Dia 1.8m : H=1.2m ; W=1.2m
        o    Dia 2.0m : H=1.3m ; W=1.2m
        o    Dia 2.5m : H=1.8m ; W=1.2m
        o    Dia 3.0m : H=2.4m ; W=1.2m
   •    Pack length according to the length of the autoclave
        o    To be chosen according to the customer's needs

The autoclaves are always designed according to the wishes and needs of the customer. With our various options the most efficient configuration can be selected:

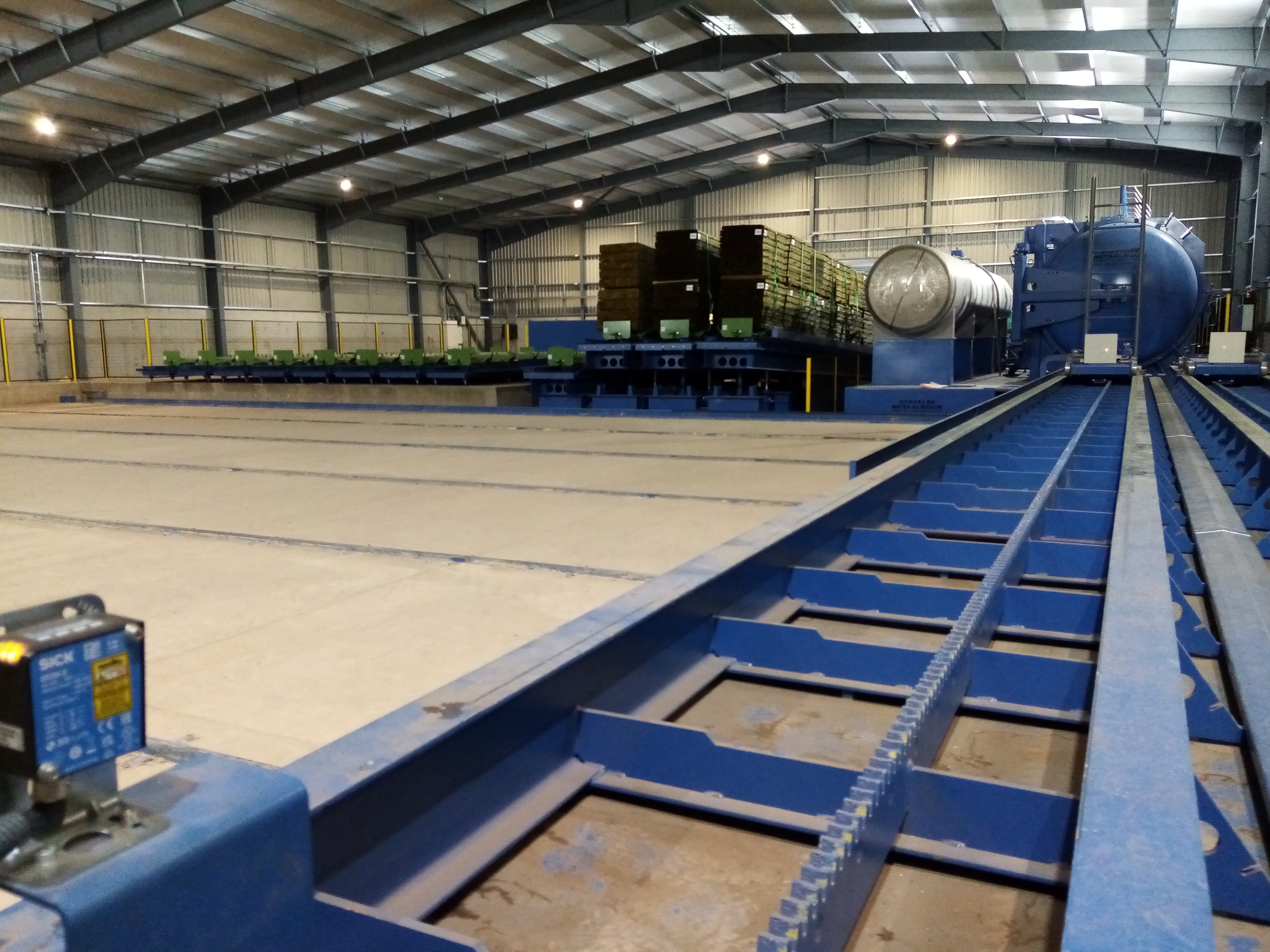

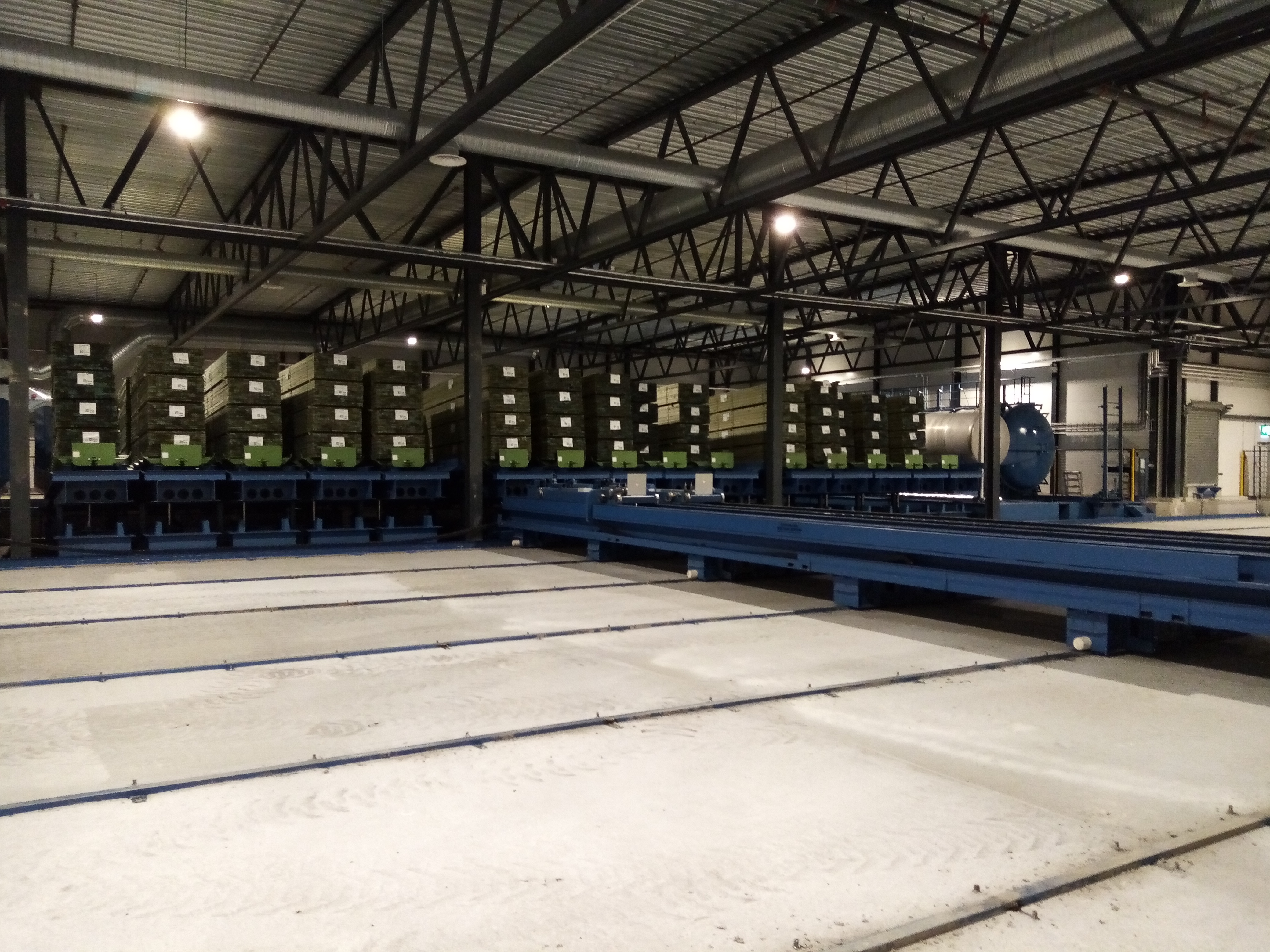

   •    Automation: door, bridge, loading to fully automatic warehouse.
   •    Tilt system

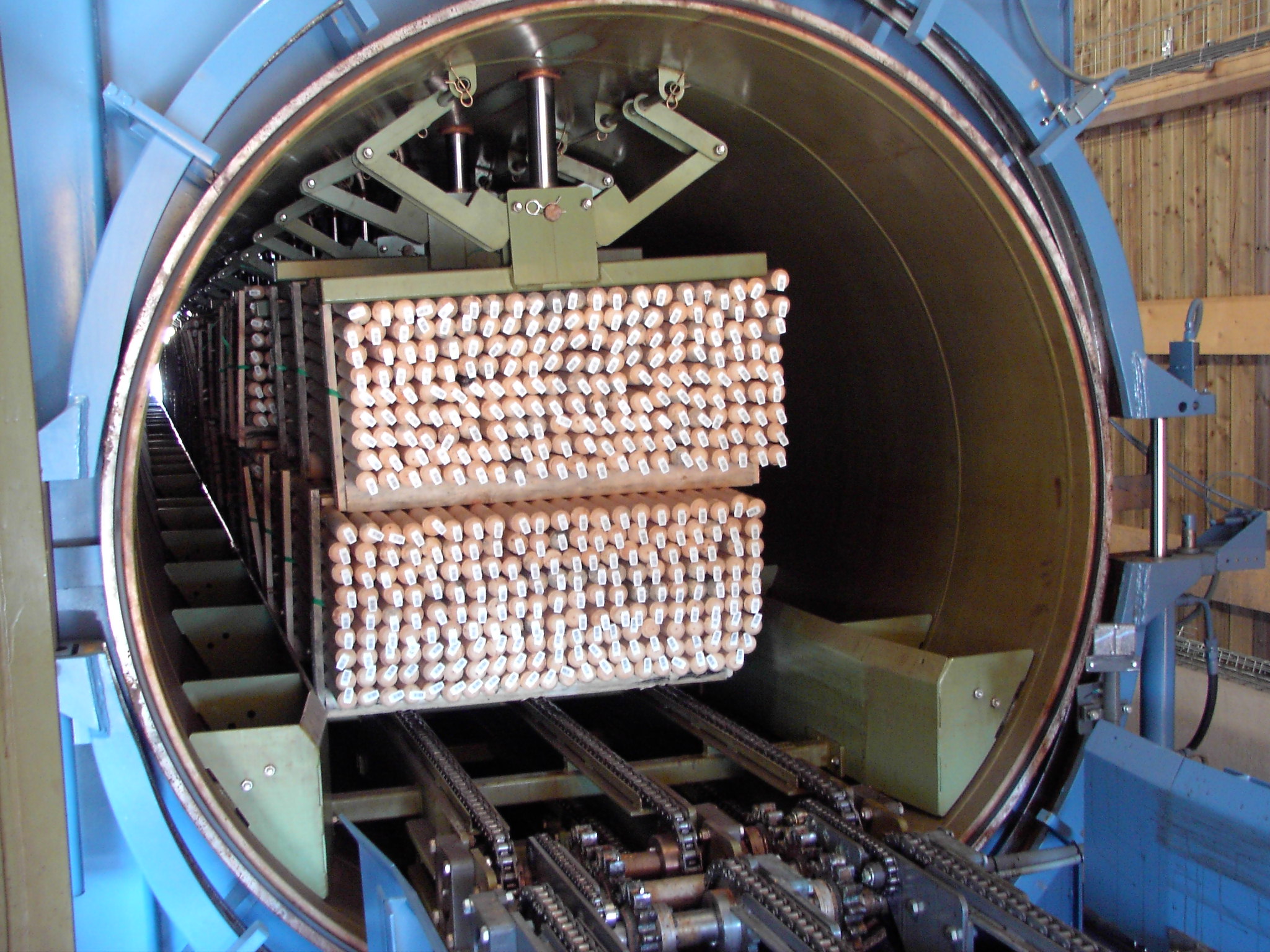

   •    Clamp system
   •    Baffels
   •    Dosing systems
   •    Various storage tanks
   •    Two doors
   •    …
